Shoes Bending Stiffness Tester GT-KA16

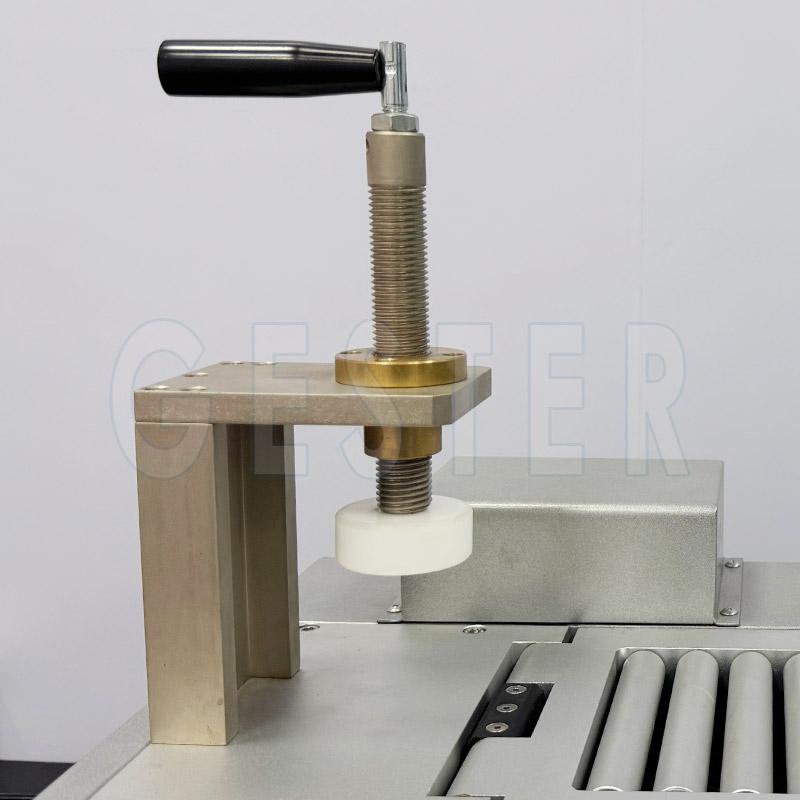

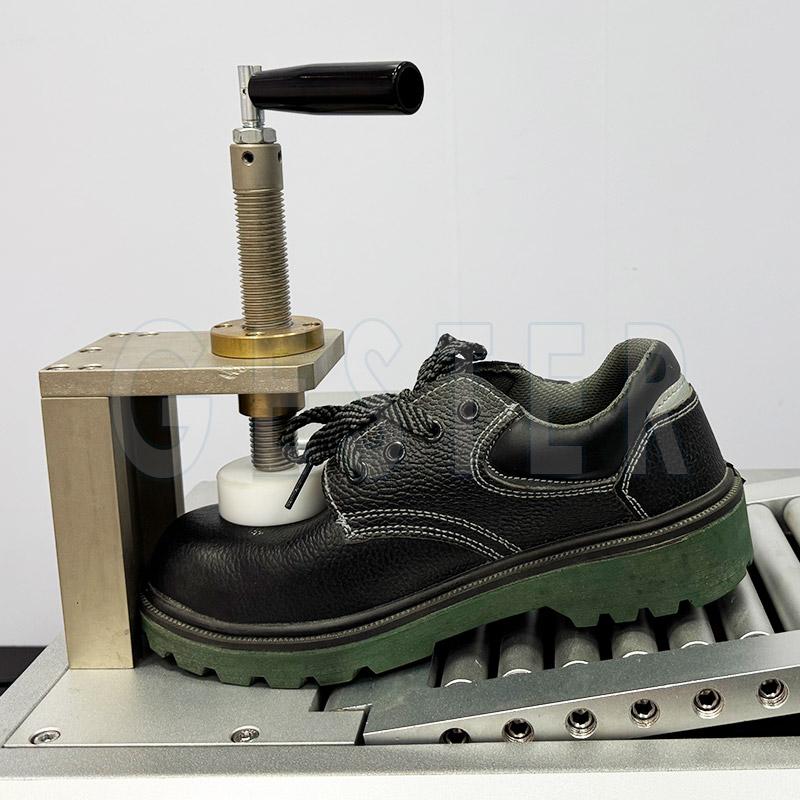

Shoes Bending Stiffness Tester is used to measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the foreshoes (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.

  • Brand:

    GESTER
  • Item NO.:

    GT-KA16
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

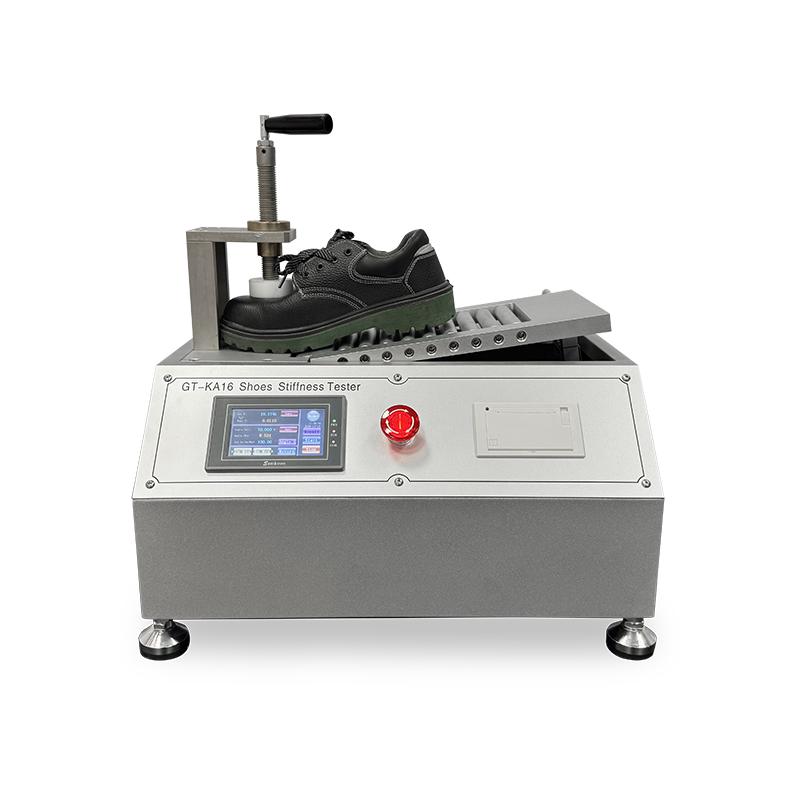

Shoes Stiffness Tester GT-KA16




Product Introduction

Application:

Shoes Bending Stiffness Tester is used to measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the foreshoes (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.


Standards:

GB/T 20991 section 8.4.1, ISO 20344-2021 section 8.4.1, AS/NZS 2210.2 section 8.4.1,

ISO 17707 section 4.2

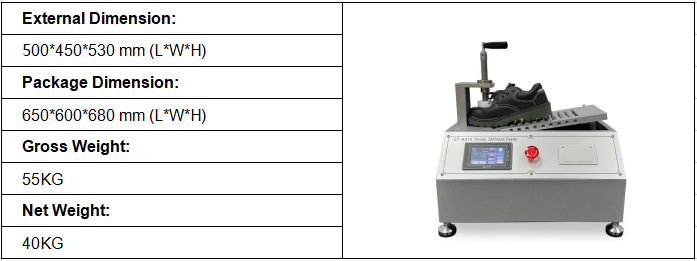

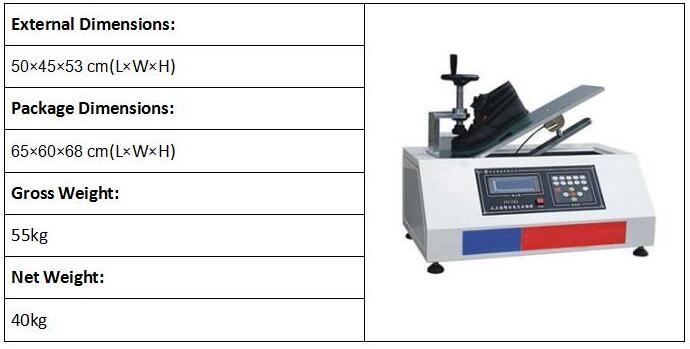

Dimensions

Shoes Bending Stiffness Tester GT-KA16

Feature

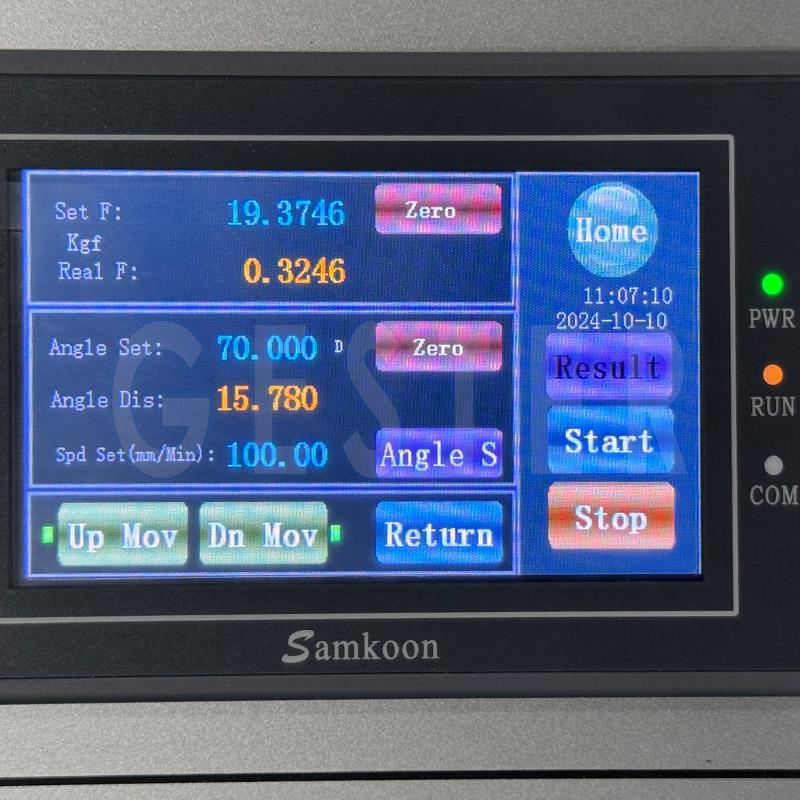

1.LCD control, easy operate, and display results digitally.

2.Shoes Bending Stiffness Tester Equip with a decoder on shaft, and inducting angle speed of turning board, showing the value through the display with accuracy of 0.1°.


Key Specifications

Model

GT-KA16

Capacity

200 N

Bending speed

100mm/min (adjustable)

Sample size

French standard: Size 39, 42 ; British standard : Size 6, 8

Test load

30 N

Bending position

1/3 of shoes

Angle resolution

0.1°

Force resolution

1/50000

Measurement method

Fixed fore to display angle

Fixed angle to display force

Power

1∮AC 220V  50/60HZ  3A

Dimension (W×D×H)

50×45×53 cm

Weights

40kg

Standards

GB/T 20991 section 8.4.1

ISO 20344-2021 section 8.4.1

AS/NZS 2210.2 section 8.4.1

ISO 17707 section 4.2
