Yarn and Sliver Evenness Testing Equipment GT-A14EH

The GESTER GT-A14EH is a professional instrument for comprehensive quality testing of yarns and slivers. It measures key parameters such as unevenness (CV%, U%), hairiness (H, SH), and 12-grade imperfections for various materials, including cotton, wool, silk, flax, and synthetics.

Brand:
GESTER
Item NO.:
GT-A14EH
Order(MOQ):
1
Lead Time：
20-30 days

Inquire now

Product Detail

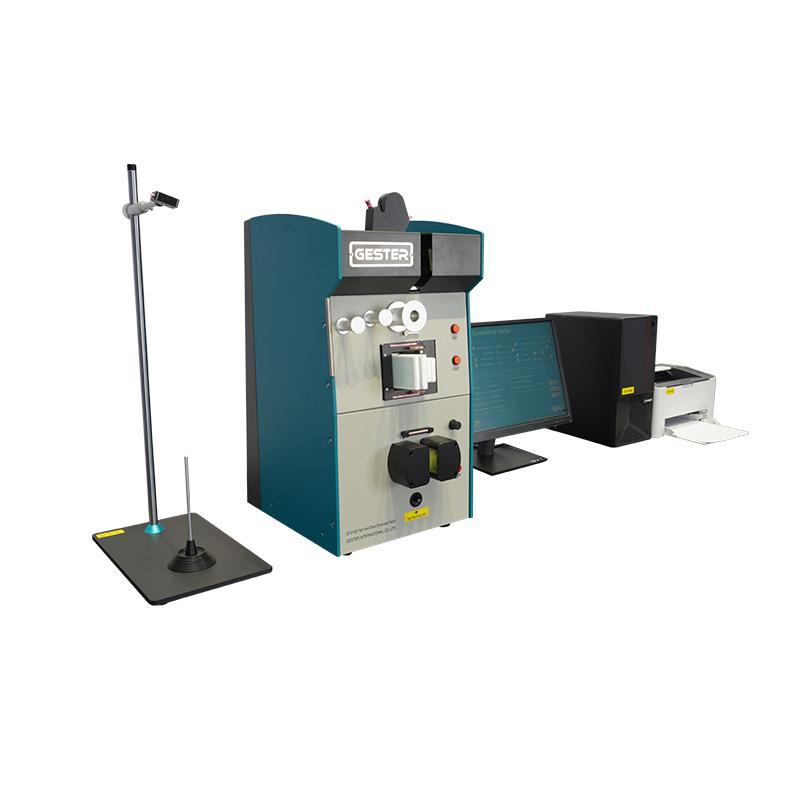

Yarn and Sliver Evenness Testing Equipment GT-A14EH

Product Introduction

The Yarn and Sliver Evenness Tester is a cutting-edge testing instrument designed for textile laboratories. It is used to test the unevenness and hairiness variation of yarns, and is suitable for pure and blended slivers of cotton, wool, silk, flax, and synthetic staple fibers. It is of great significance for improving and ensuring yarn quality.

Feature

Data calculation by computer. Windows-based monitoring software with full-Chinese GUI, high integration and stability.
Real-time test of CV%, U%, H, SH values and 12-grade imperfections.
Multiple graphical indicators (variation-length, unevenness, spectrogram, linear density-frequency distribution) for easy yarn quality evaluation.
340-channel continuous evenness spectrogram for precise process fault analysis.
DR% value, scatter plot, DR curve and △DR(Lc) for random unevenness analysis, predicting fabric appearance after weaving.
Statistical system generates daily/monthly/quarterly/annual reports and distribution graphs for long-term trend monitoring.
Expert system assists in process fault analysis and spinning performance evaluation.
Storable unevenness curves for in-depth analysis.
Electromagnetic tensioner with software-controlled tension.
Servo-driven transmission system, low noise and high reliability.
Auto-retractable rollers reduce wear and stabilize yarn running.
Auto zeroing function improves efficiency and simplifies operation.
High data consistency with traditional test methods.

Key Specifications

Model	GT-A14EH
Measurement range	4tex-80ktex
Drafting speed	4、8、25、50、100、200、400m/min
Testing time	At intervals of 10 seconds, choose any time within 10 seconds to 20 minutes
Coefficient of variation	(CV%) or Unevenness Rate (U%) and CV(1) Variation-Length Curve
	CV% or U% Test range 0.20% ~ 100.00%
	Variation - length curve cutting length 1 cm ~ 983 m
Deviation rate (DR%)	DR value measuring range 0.00% ~ 100.00%
Reference lengths and thresholds	20cm,+35%; 20cm,-30%; 1m,5%; 1m,-5%;
Relative deviation coefficient △DR(Lc)	1m,-5%;1m,+15%;1m,-10%
	DR curve: deviation rate curves with reference lengths of 1 cm, 10 cm, 20 cm, 50 cm, 1 m, thresholds from 0% to 50%
	△DR(Lc): Cutting lengths Lc: 1 cm, 20 cm, 1 m
	Thick: +35%, +50%, +70%, +100%
	Neps : +140%, +200%, +280%, +400%
Spectral analysis range	Normal spectrogram: 1 cm ~ 2937 m (85 channels)
Spectral analysis range	High-resolution spectrogram: 1 cm ~ 2937 m (340 channels)
Linear density frequency distribution range	2 diagrams covering -100% ~ +100% and above +100%
Two statistical functions	Statistical analysis of test data, including mean, between-package CV (Cvb), 95% confidence interval (Q95%), max., mini., etc.
Two statistical functions	Graphical statistics of batch spectrograms and variation-length curves
Statistical distribution diagrams	Statistical distribution diagrams for common test indicators (CV%, thin places -50%, thick places +50%, neps +200%), statistical time arbitrarily settable on a daily basis
Hairiness indexes	Yarn count range: 4 tex~160 tex Test speed: 200 m/min, 400 m/min Outputs hairiness H value, standard deviation SH. Outputs hairiness spectrum, hairiness variation-length curve, hairiness distribution map, hairiness unevenness curve, etc.
Power supply	1 phase AC 220V±10%, 50Hz/60Hz
