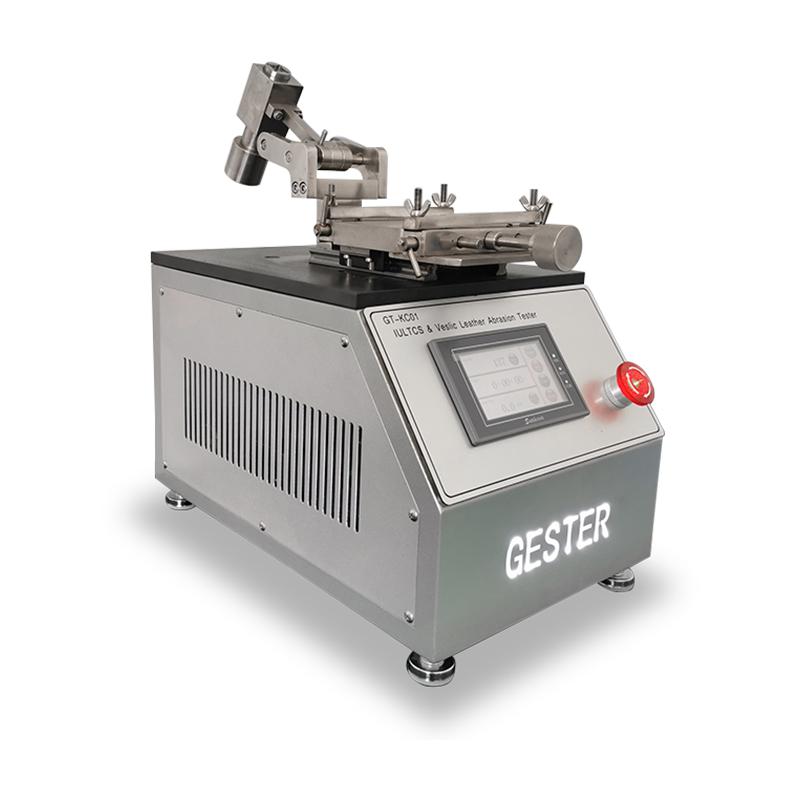

IULTCS & Veslic Leather Abrasion Tester GT-KC01-1

The GESTER GT-KC01-1 Veslic Rub Fastness Tester is a benchtop laboratory instrument designed to measure the color fastness and surface wear resistance of leather, footwear uppers, synthetic materials, and coated fabrics. It evaluates finish damage, color transfer, and surface breakdown under regulated cyclic rubbing with standard wool felt in both dry and wet conditions. Compliant with ISO 11640, DIN 4843, and EN ISO 20344, the GT-KC01-1 provides precise, reproducible quality control data for leather tanneries, footwear manufacturers, and automotive interior laboratories.
  • Brand:

    GESTER
  • Item NO.:

    GT-KC01-1
  • Order(MOQ):

    1
  • Payment:

    T/T,L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    Have in stock
  • Product Detail

IULTCS & Veslic Leather Abrasion Tester | Color Fastness Rubbing Tester


Product Introduction of veslic tester

This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. Rubbing Fastness Tester can be used for dry abrasion testing and wet abrasion test.


Standards:

ISO 11640, ISO 20868, ISO 17700 Method A, EN ISO 20344 section 7.3

SATRA PM 173, DIN 4843, AS/NZS 2210.2 sec 7.3

QB/T 2537, GB/T 20991 sec 7.3, GB/T 40920, GE-29


Applications

Footwear & Leather Goods: Safety footwear uppers, luxury leather items, upholstery leather.

Textiles & Apparel: Coated fabrics, synthetic leathers, garment textiles.

Automotive Interiors: Automotive leather trim and upholstery wear performance.


Key Specifications of veslic tester

Model

GT-KC01-1

Position

1

Control mode

Touch screen control

Area of testing head

15mm x 15mm

Movement speed

40 ± 2 times / min.

Rubbing stroke

35~40 mm

Rubbing finger mass

500g

Additional weight mass

500g

Fixtures distance

80mm

Sample size

120x20mm

Tension extension range of sample

0 ~ 20%

Power supply

1∮AC 220V 50/60HZ

Dimensions (L x W x H)

490x340x550mm

Weight

33kg


Need Higher Testing Efficiency?

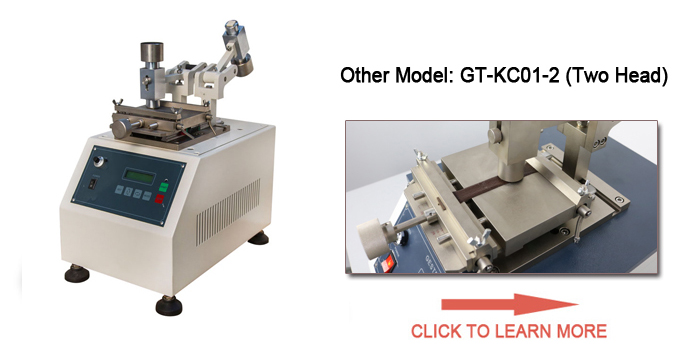

If your laboratory handles high-volume sample testing or requires simultaneous dry and wet rubbing fastness evaluation, check out our Dual-Station IULTCS Veslic Leather Abrasion Tester GT-KC01-2 to double your testing throughput.


Application Industry of veslic tester

All kinds of materials can be tested on the IULTCS & Veslic Leather Abrasion Tester
