Sealing Tester GT-N69A

ASTM-D3078-94, GB/T-15171-1994 leak tester

Brand:
GESTER
Item NO.:
GT- N69A
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

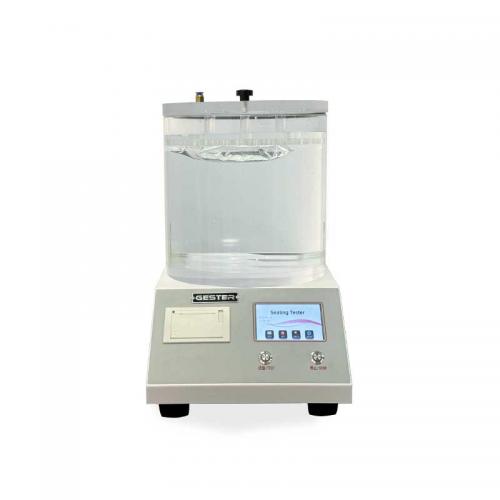

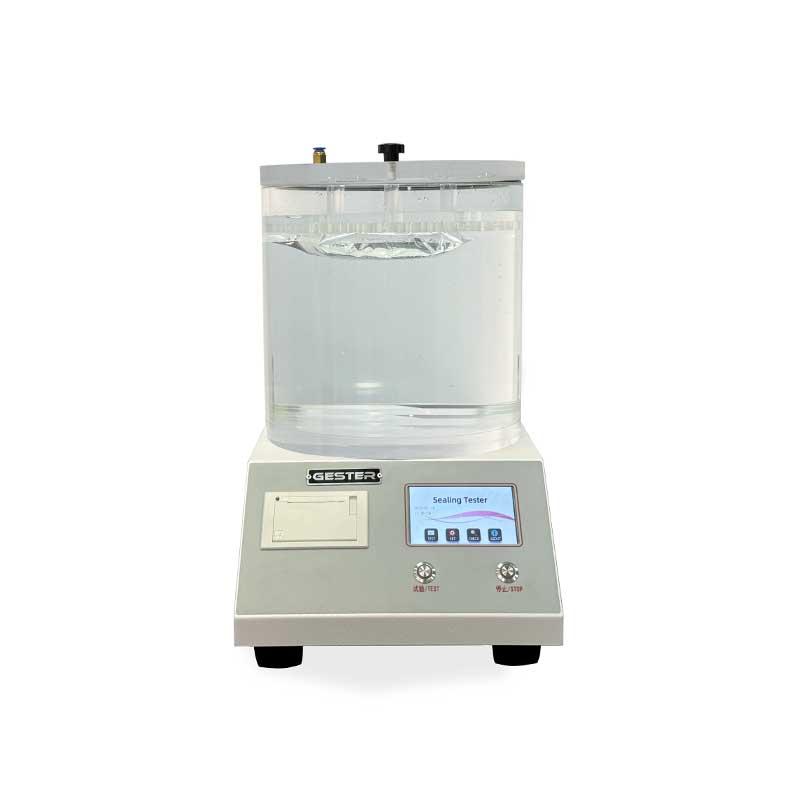

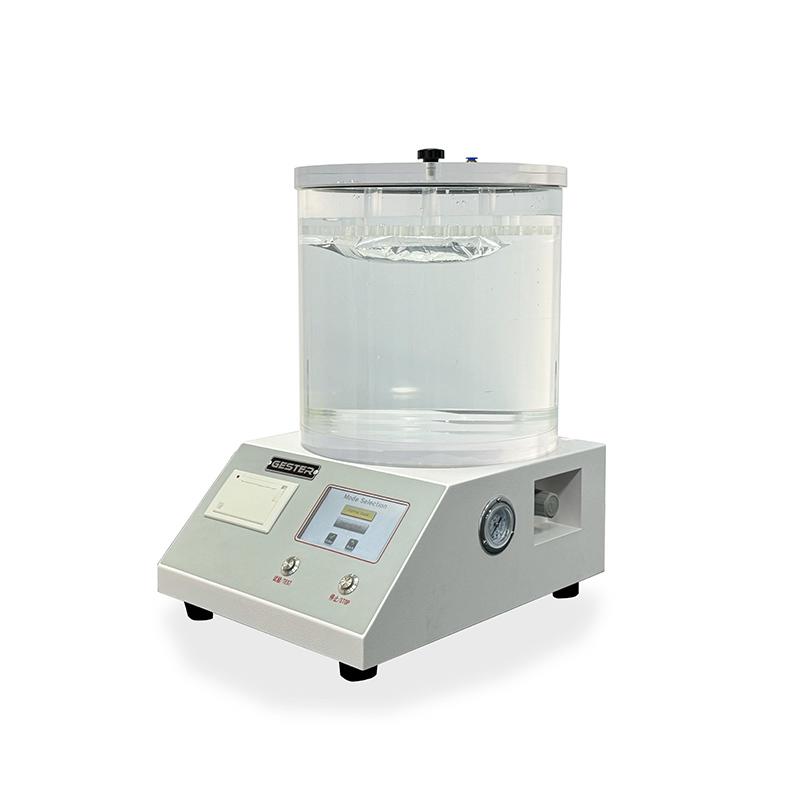

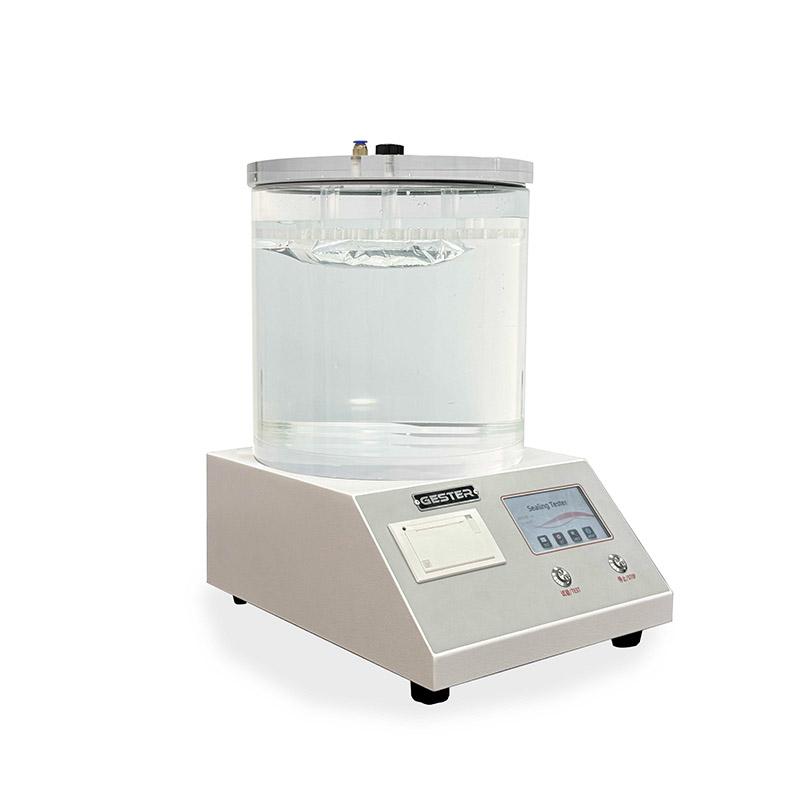

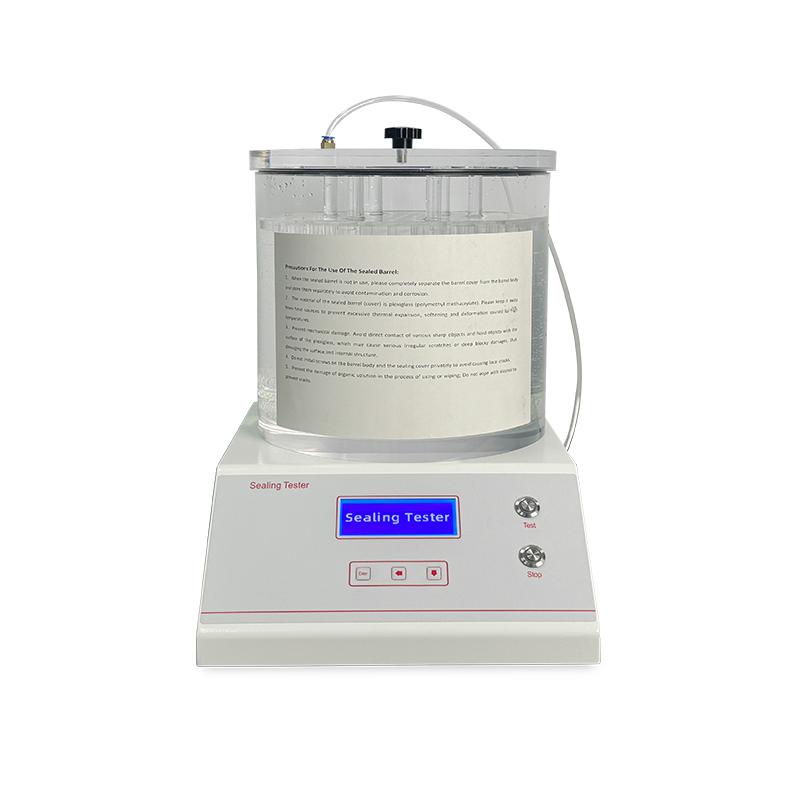

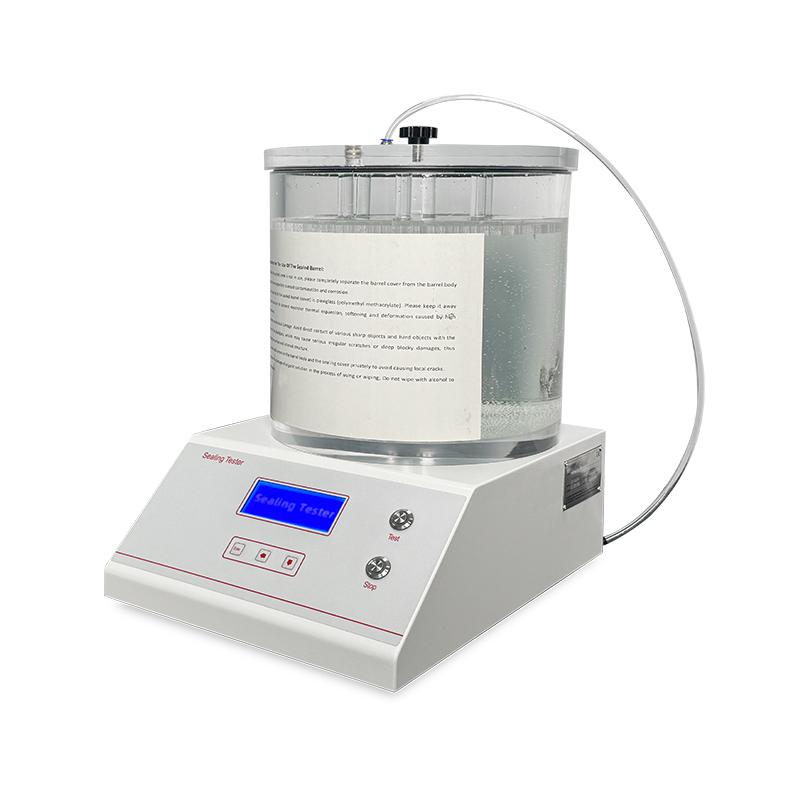

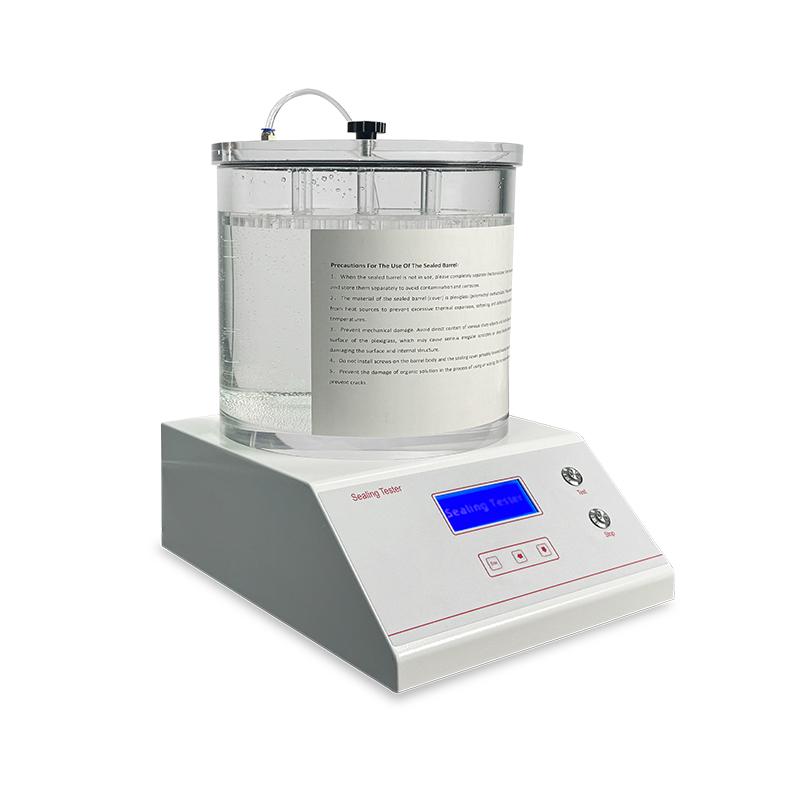

Sealing Tester GT-N69A

Product Introduction

Application

sealing tester is applicable for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and etc. Also can be used to test seal performance of specimens after falling and compression tests.

Standards:

YBB00052005-2015, GB/T15171, GB/T27728-2011, GB7544-2009, ASTMD3078, YBB00122002-2015

Sealing Tester Principle

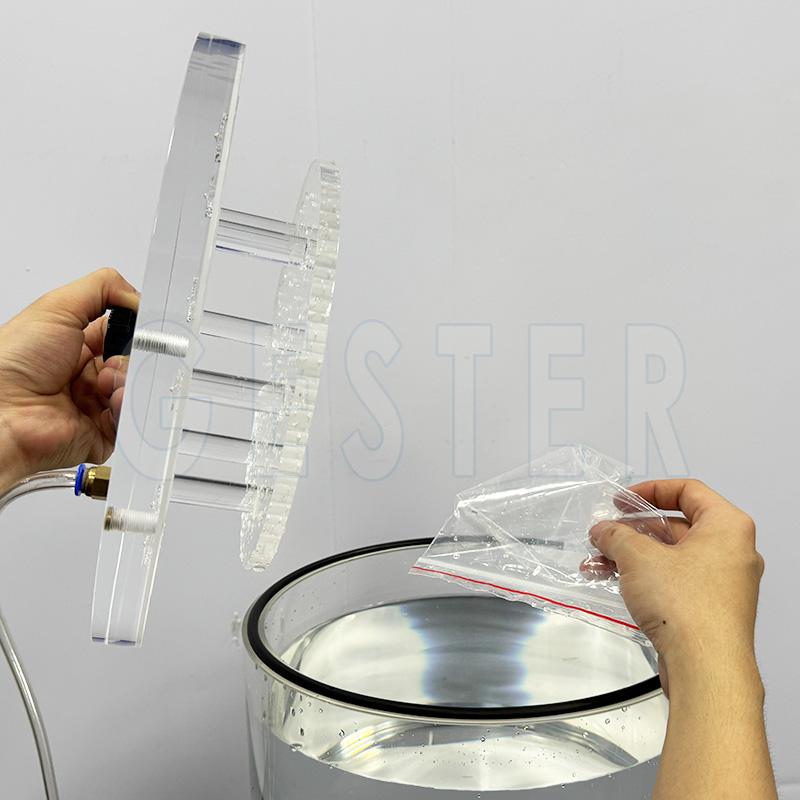

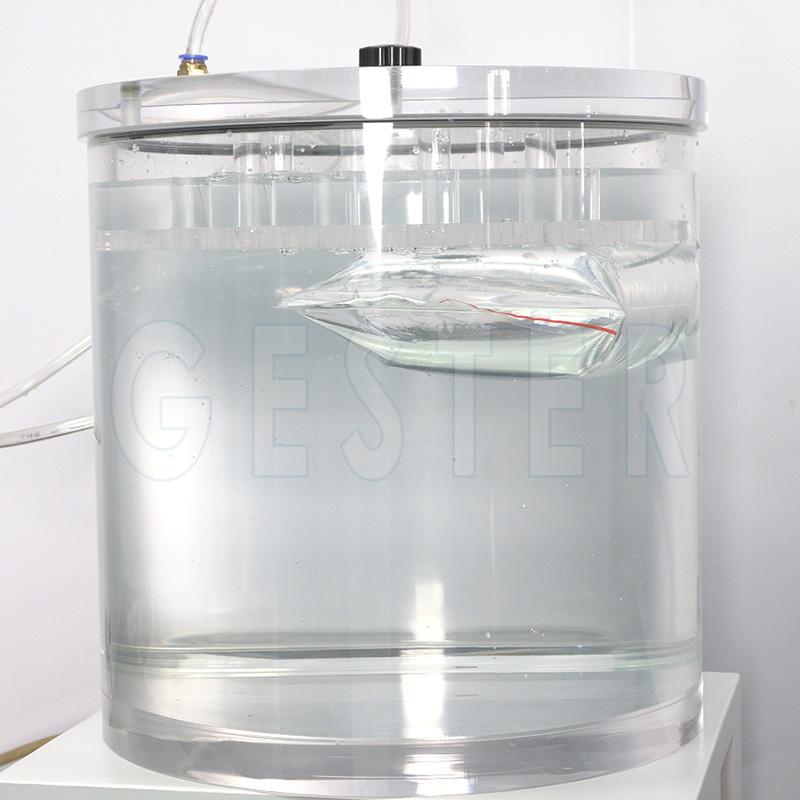

This machine uses vacuum water bath method: immerse the sample 20mm below the water surface, evacuate the vacuum tank, and observe whether there are continuous bubbles rising from the sample to check if there is any leakage.

Vacuum Leak Tester Key Specifications

Model	GT- N69A-1	GT- N69A-2	GT- N69A-3
Vacuum Chamber Effective Sizes	Φ270 mm×210 mm(H)	Φ360 mm×585 mm(H)	Φ460 mm×330mm(H)
Vacuum	0~-90kpa
Accuracy	Level 1
Gas Supply Pressure	0.5-0.8MPa (Equipped by user)
Gas Supply Connector	Φ6mm Polyurethane pipe
Weight	15kg
Dimension(L×W×H)	330×380×500mm
