The GT-LC05-1 Single Wing Package Drop Tester is an essential quality control instrument designed to evaluate the durability of packaged products during transport and handling. By simulating free-fall impacts from various heights, this machine helps manufacturers, logistics providers, and testing labs minimize product damage and optimize packaging design. ensuring compliance with ISTA and ISO standards.
The GT-LC05-2 Double Wings Drop Tester designed for testing large-scale and oversized packaging. Unlike single-arm models, its symmetrical dual-wing structure provides superior horizontal stability, making it the preferred choice for bulky items such as furniture, white goods, and heavy industrial components. The machine features a synchronized electromagnetic release system to ensure a perfectly level free-fall, strictly adhering to ISO 2248, ISTA standards.
The Zero Height Drop Tester is mainly used to evaluate the influence of the package in the actual transportation, the loading and unloading process, and to evaluate the impact strength and the rationality of packaging design.
Mattress impact tester is widely used to determine and assess the impact resistance of built-in and box-type mattress , to evaluate sofa and mattress sustaining rapid drop on seat or jumping stress ability.

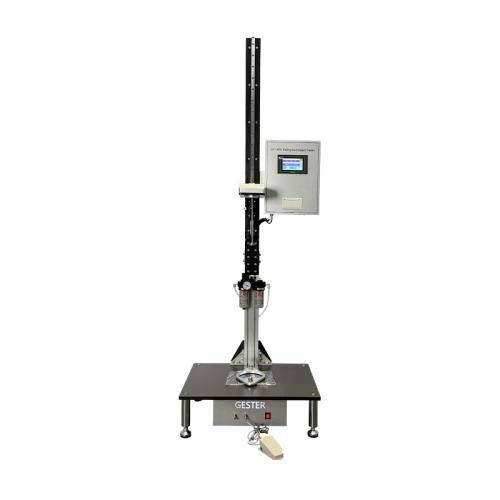

Battery Drop Tester GT-I02 Product Introduction Application: This drop tester is suitable for free fall testing of small consumer electronic products and components such as mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, etc. Standards: GB 31241-2022, UL 1642, IEC62133-2012, GB/T36276-2020 Main Features and Functions This battery pack drop tester adopts a pneumatic structure. The test specimen is placed in a dedicated fixture (with adjustable stroke) and clamped securely. Pressing the drop button releases the cylinder, and the test piece will undergo a free fall test. Battery drop tester Key Specifications Model GT-I02 Drop height 300~1500mm (adjustable) Display Accuracy 1mm Height error ±5mm Display Mode PID Maximum specimen weight 10kg±100g Specimen Dimensions ( L×W ) 220×150 mm Drop test medium Steel plate Test Drop Point Free fall Drop method Pneumatic drop Lifting Method Electric lifting Operating Air Pressure <2 MPa (User supply air source) Machine dimensions ( W×D×H ) 650×560×1700mm Height Setting Encoder-displayed height, intelligent control (350–1500 digitally adjustable, very convenient for users) Power supply AC 220V±10%, 50HZ Power 300W Weight Approx. 120 kg
