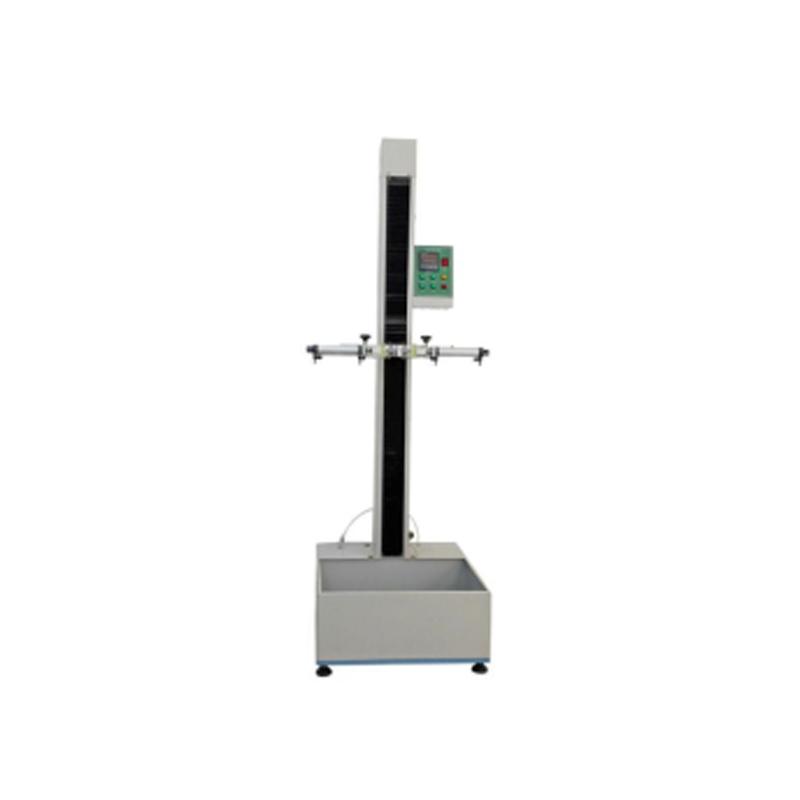

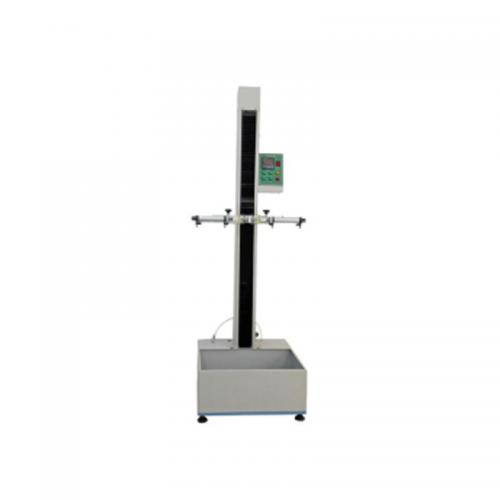

Battery Drop Tester GT-I02

Brand:
GESTER
Item NO.:
GT-I02
Order(MOQ):
1
Lead Time：
15-30 Days

Inquire now

Product Detail

Battery Drop Tester GT-I02

Product Introduction

Application:

This drop tester is suitable for free fall testing of small consumer electronic products and components such as mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, etc.

Standards:

GB 31241-2022, UL 1642, IEC62133-2012, GB/T36276-2020

Main Features and Functions

This battery pack drop tester adopts a pneumatic structure. The test specimen is placed in a dedicated fixture (with adjustable stroke) and clamped securely. Pressing the drop button releases the cylinder, and the test piece will undergo a free fall test.

Battery drop tester Key Specifications

Model	GT-I02
Drop height	300~1500mm (adjustable)
Display Accuracy	1mm
Height error	±5mm
Display Mode	PID
Maximum specimen weight	10kg±100g
Specimen Dimensions ( L×W )	220×150 mm
Drop test medium	Steel plate
Test Drop Point	Free fall
Drop method	Pneumatic drop
Lifting Method	Electric lifting
Operating Air Pressure	<2 MPa (User supply air source)
Machine dimensions ( W×D×H )	650×560×1700mm
Height Setting	Encoder-displayed height, intelligent control (350–1500 digitally adjustable, very convenient for users)
Power supply	AC 220V±10%, 50HZ
Power	300W
Weight	Approx. 120 kg
