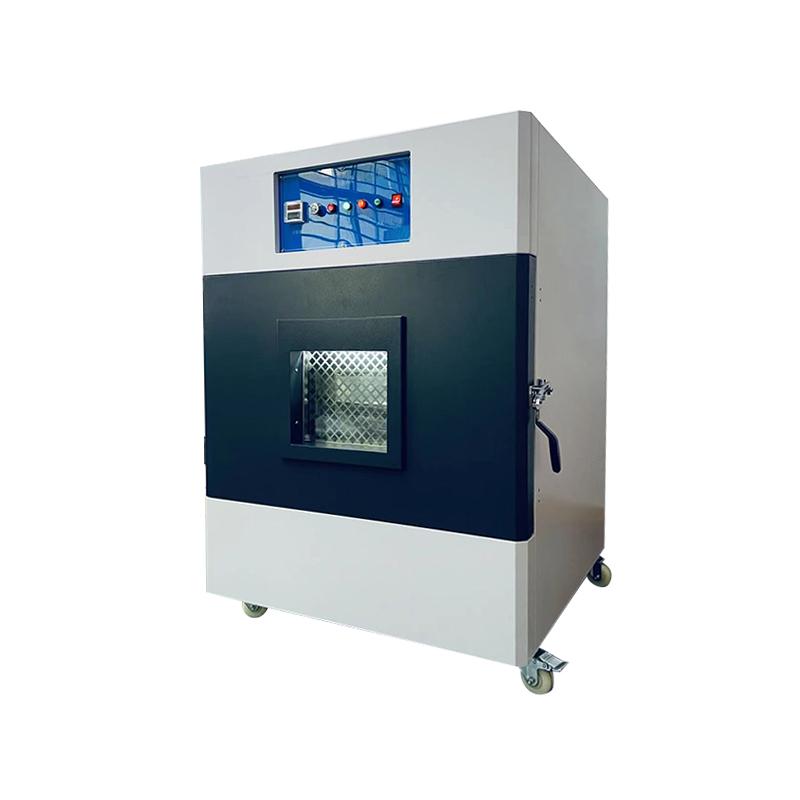

Battery Burning Tester GT-I07| Battery Test Chamber Factory
Product Introduction
Application:
This apparatus is designed for battery flammability testing and is constructed in strict accordance with the UL 2054 testing standard. This tester is an essential piece of equipment for quality control and quality testing in various battery manufacturing enterprises and quality inspection departments. The product features easy operation, safe and reliable use, and high accuracy, making it the most ideal specialized equipment for battery combustion and projection tests currently available.
Standards:
UL1642-2005, UL2054-2005, SJ/T 11170-1998, SJ/T 11169-1998, GB/T 31241-2014
Test Method
Fix the wire mesh at a position 38 mm above the top of the burner. The mesh have 20 openings per 25.4 mm, with a wire diameter of 0.45 mm.
Ignite the burner and observe the combustion of the battery until it explodes or is completely burned, record the duration of the combustion process simultaneously.
Test Result: After the test, neither the individual components of the battery (excluding powdery residues) nor the battery as a whole shall penetrate the aluminum mesh.
Key Specifications
|
|
Model
|
I07
|
|
Burner
|
Bunsen burner, inner diameter of the tube: 0.375 inch (9.5 mm), length approx. 100 mm
|
|
Flame Application Time
|
0 ~ 999.9 s ± 0.1 s
|
|
Flame After-burn Time
|
0 ~ 999.9 s ± 0.1 s
|
|
Flame Nozzle Position
|
38mm between flame nozzle and battery placement platform
|
|
Flame Height
|
10～75±2mm
|
|
Test Rod Diameter
|
1/4 inch (6.35mm) × 14 inches (355.6mm)
|
|
Test Hood Width
|
24 inches (610±10 mm) × 14 inches (305±5 mm), octagonal
|
|
Test Hood Height
|
12 inches (305 ± 5 mm)
|
|
Test Aluminum Mesh Diameter
|
0.010 inch (0.25 mm); 16–18 Mesh
|
|
Test Steel Wire Mesh Diameter
|
20 mesh per inch (25.4 mm); Wire Diameter: φ0.45 mm
|
|
Octagonal Mesh Cover
|
Distance between opposite sides: 2 feet (610 ± 10 mm)
Mesh height: 1 feet (305 ± 5 mm)
|
|
Test Hole Diameter
|
100 ± 2 mm
|
|
Ignition Device
|
Automatic Ignition
|
|
Display Method
|
PID
|
|
Control Method
|
Push-button control
|
|
Combustion Gas Requirement
|
High-purity Liquefied Petroleum Gas (User-supplied)
|
|
Base
|
Equipped with swivel casters
|
|
Viewing Window
|
300 × 300 × 10 mm (thick tempered explosion-proof glass)
|
|
Timing Range
|
0-99 (Switchable between Hours, Minutes, and Seconds)
|
|
Inner Chamber Material
|
SUS304 Stainless Steel
|
|
Outer Chamber Material
|
Powder-coated cold-rolled steel
|
|
Smoke Exhaust Device
|
Diameter 100 mm
|
|
Dimensions (W*D*H)
|
940 x 780 x 1400 mm
|
|
Power Supply
|
AC 220V, 50 Hz
|
|
Power
|
0.5KW
|
|
|
|
