Brand:
GESTERItem NO.:
GT-I20Order(MOQ):
1Lead Time：
15-30 DaysProduct Detail
Application:

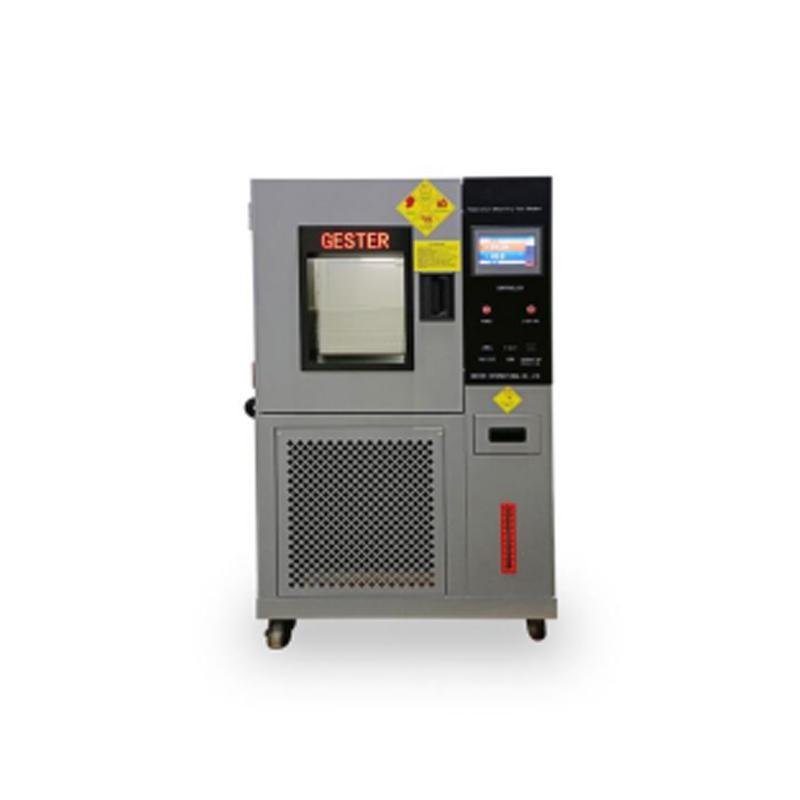

This chamber suitable for lithium-ion cells, modules and battery packs, as well as electronic testing applications.
|
Model |
GT-I20 |
|
Capacity |
225L |
|
Inside dimension (WxDxH) |
500 x 500 x 750 mm |
|
Temperature Range (without humidity control) |
-40°C to +150°C, accuracy and uniformity ±1.0°C |
|
Temperature Range (with humidity control) |
20°C to +100°C, humidity 20%-98%RH, ±2.5%RH |
|
Test Space Load Bearing Capacity |
10 kg or higher, uniformly distributed load (UDL) |
|
Heat Load |
1000W |
|
Inner Chamber Construction |
AISI-304 stainless steel, mirror finish |
|
Shelf Arrangement |
Two adjustable stainless steel shelving channels with adequate load bearing capacity |
|
Plenum Area |
Dedicated plenum section accommodating blower, heaters, evaporator and dehumidification system |
|
Entry Ports |
1 No. LHS Ø100 mm and 1 No. RHS Ø50 mm insulated cable entry ports |
|
Port Construction |
Non-conductive silicone ports with removable silicone plugs |
|
Exterior Construction |
Minimum 14-gauge galvanized steel |
|
Door Construction |
Full access hinged insulated door with pull-action latch lock |
|
Door Features |
Limit switch and anti-condensation heaters |
|
Insulation |
High-density mineral wool insulation, up to 48 kg/m3, asbestos-free |
