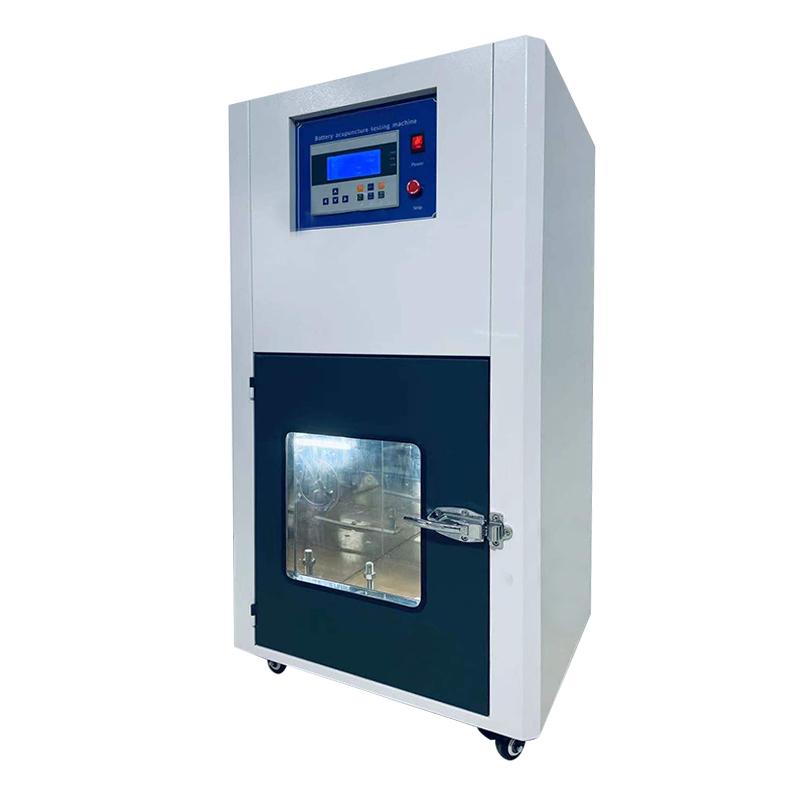

Model

GT-I04

Pressure Range

1KN ~ 300KG

Force Value Error

±1%

Unit Conversion

Kg/N/Lb

Nail Penetration Speed Range

1 ~ 40mm/s (adjustable)

Speed Accuracy

0.5mm/s

Unit Conversion

Kg/N/Lb

Drive Method

Pneumatic

Inner Chamber Material

SUS 201# stainless steel (1.2 mm thickness, reinforced; total thickness with outer chamber is 80 mm)

Outer Chamber Material

Powder-coated cold-rolled steel plate (1.5 mm thickness)

Chamber Structure

Vertical structure

Nail Penetration Stroke

0-200 mm

Test Space(W*D*H)

400×400×450 mm

Tempered Glass Viewing Window

A 300×300 mm double-layer tempered glass window is installed on the chamber door, equipped with a stainless steel explosion-proof protective mesh, allowing clear observation of the test process.

Control Method

PID integrated LCD control system; easy operation; allows real-time monitoring of speed, pressure, displacement, hold time, and test count, with automatic reset after test completion.

High-Temperature Resistant Steel Needles

Φ3 mm, Φ5 mm×100 mm, 3 pieces each

Exhaust Port

100 mm diameter, located at the upper rear of the chamber

Explosion-Proof Pressure Relief Device

Equipped with exhaust function to discharge large amounts of waste gas generated during testing;Also features an explosion-proof pressure relief function, consisting of a magnetically attached pressure relief door (200×200 mm) on the rear of the protective chamber, which automatically opens under strong airflow impact to mitigate

Lighting Device

High-brightness, energy-saving explosion-proof lamp installed inside the chamber to illuminate the entire test area for easy observation

Exhaust System

equipment can automatically exhaust the smoke through a duct when the test specimen generates smoke

Base

Equipped with 4 universal casters for easy movement and stable positioning

Viewing Window Size

300×300×10 mm (thick tempered explosion-proof glass)

Chamber Dimensions (W×D×H)

650×600×1300 mm

Power Supply

AC 220V

Power

100W

Weight

Approx. 100 kg
