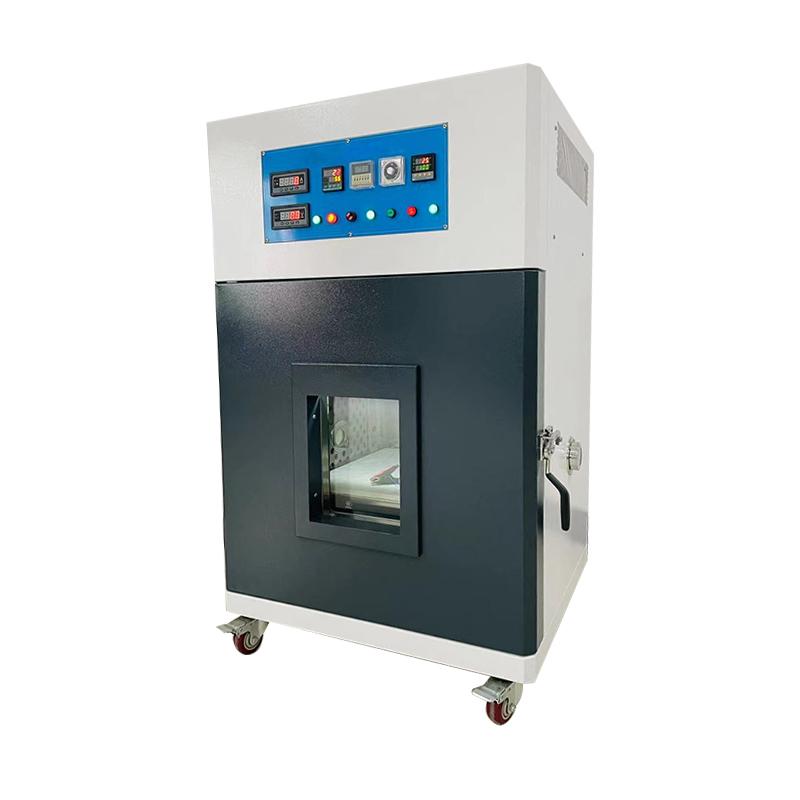

Battery Short Circuit Tester GT-I09| Battery Test Chamber Factory
Product Introduction
Application:
The battery short-circuit tester is designed according to the requirements of various battery short-circuit test standards. According to the standard, the short-circuit device must meet the internal resistance range of 80mΩ±20 or ≤10mΩ to obtain the maximum short-circuit current required by the test. This machine is used to simulate the external short circuit of the battery or battery pack/battery pack sample, and judge its safety through its phenomenon.
Standards:
IEC62133, UL1642, UN38.3, GB31241, GB/T36276, GB/T36972
Standard Requirement:
-
High Temperature External Short Circuit.
-
Fully charge the battery according to the specified test method, connect the positive and negative terminals of the battery with a wire and ensure the total external resistance is (80±20)mΩ at the same time; place the battery in an environment of 57℃±4℃, and keep it for another 30min after the battery temperature reaches 57℃±4℃. The battery surface temperature can be monitored during the test. The test shall be terminated when one of the following conditions is met:The short-circuit duration reaches 24 hours.
-
Acceptance Criterion: The battery shall not catch fire or explode.
Key Specifications
|
|
Model
|
GT-I09
|
|
Maximum testing voltage
|
500V
|
|
Dc response time
|
≤5μs
|
|
Maximum short circuit current
|
0-1000A
|
|
The device interior resistance
|
80±20mΩ
|
|
Test space
|
500×500×500 (mm, W×D×H)
|
|
Control mode
|
PID Control
|
|
Storage shelf
|
Load capacity ≥30Kg; 1 storage shelf, made of SUS201 stainless steel
|
|
Inner chamber material
|
SUS201 stainless steel, 1.2mm thick
|
|
Outer chamber material
|
The 1.5mm-thick cold-rolled steel plate is reinforced and features a powder-coated, baked-paint finish.
|
|
Mechanical service life
|
300,000 cycles
|
|
Sealing strip
|
Corrosion-resistant silica gel
|
|
Temperature control
|
Temperature range: RT+10℃~100℃
Temperature rise rate: 3℃/min
Temperature fluctuation: 0.5℃
Temperature uniformity: ±2℃
|
|
Test stop condition
|
Short-circuit duration
|
|
Battery surface temperature
|
Monitors temperature changes of battery surface during the test
|
|
Current acquisition channel
|
1 channel
|
|
Current acquisition range
|
0-500A DC
|
|
Current acquisition accuracy
|
±0.5%F.S
|
|
Acquisition rate
|
1 time/s
|
|
Voltage acquisition channel
|
1 channel
|
|
Voltage acquisition range
|
0～10V
|
|
Voltage acquisition accuracy
|
±0.2%FS
|
|
Voltage acquisition rate
|
1 time/s
|
|
Temperature acquisition channel
|
1 channel
|
|
Temperature acquisition range
|
-20～600℃
|
|
Temperature acquisition accuracy
|
±1℃
|
|
Temperature acquisition rate
|
1 time/s
|
|
|
|
