Luggage Vibration Impact Tester applies for luggage vibrate impact resistant test, like handbag, luggage, golf bag, stitch parts.
Brand:
GESTERItem NO.:
GT-LC02Order(MOQ):
1Payment:
100% T/T in advanceShipping Port:
Xiamen PortLead Time：
7-30 daysProduct Detail

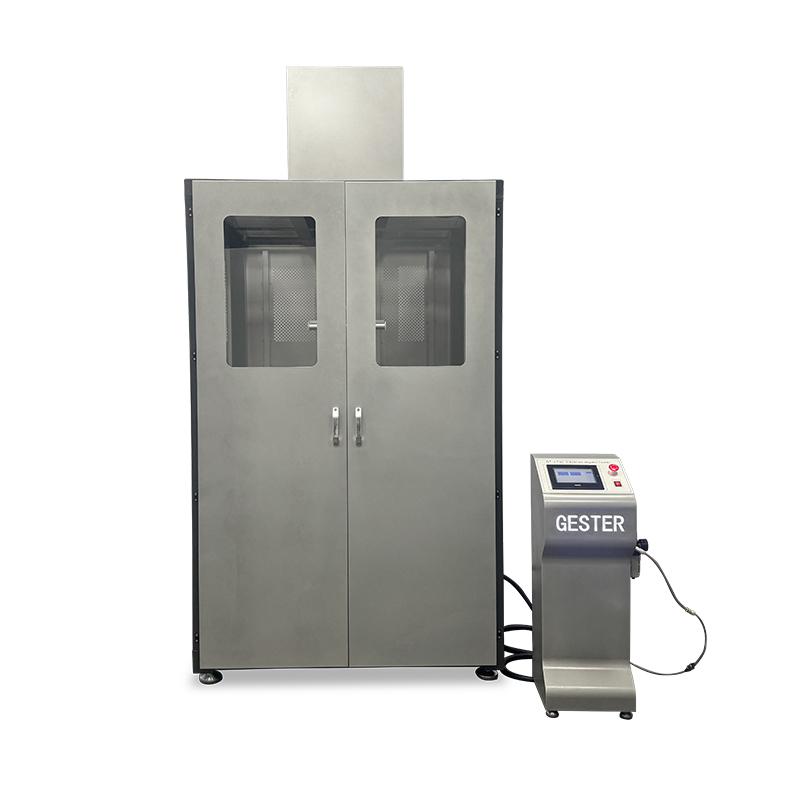

Luggage Vibration Impact Tester GT-LC02
|
Application:
This Luggage Vibration Impact Tester applies for luggage vibrate impact resistant test, like handbag, luggage, golf bag, stitch parts. Test method is put some load on, impact 30times in a min. with the distance of 1 inch, test time can set from 0-999999 times, while in many times, the machine will stop by its own and the specimen dropped off, this can be the reference data for improvement.
Features:
Standards:
QB/T 2922-2018, QB/T 5083-2018- from September, QB/T 1333 - 2018
|
|
Model |
GT-LC02 |
|
Control system |
PLC and touch screen (using man-machine interface control system, easy to operate, power cut and save function) |
|
Counting |
0-999 999 times, the equipment will automatically shutdown when it reaches the set number of times, setting the number of impact in the human-machine interface. |
|
Driving Cylinder |
100 KG weight Cylinder, AINTAC Cylinder |
|
Sample Clamp |
lower suction cup, upper damping rubber block, impact rod, the total weight of common clamps are (8.1+0.2) kg. |
|
Impact Stroke |
The impact device can move up and down, and the one-way stroke is (150 ±5) mm. The stroke is set on the basis of the impact device with an additional load of 30 kg.
|
|
Impact Weight |
The stroke is set on the basis of the additional load of the impact device of 30 kg. |
|
Impact Spring |
Spring constant (17.54±0.88) Nmm, spring section is rectangular (8.5 mm×4.2 mm) length (165±5) mm, outer diameter (44.5±0.5) mm, inner diameter (28.0 ±0.5) mm, effective number (17 soil 0.5) laps. |
|
Damping Block |
Both end of damping spring is equipped with a circular damping rubber block with an outer diameter of 100±5 mm, a height of 30±3 mm, and a diameter of a central hole of 22±2 mm. The main material is thermoplastic polyurethane, and the hardness is Shore A 85±3. The center hole of the lower damping block should ensure the impact rod passes freely and smoothly. |
|
Backpack Clamp |
The quality of backpack belt clamp is (1.35±0:05) kg. |
|
Sample Fixing Materials |
bovine split-layer section napped leather, thickness 1.5 mm~2.0 mm, width (100 ± 5) mm, softness 1.5 mm~2.5 mm (test aperture 25 mm).
|
|
Gas Source |
6KG/CM2 |
|
Power supply |
220v, 50/60HZ |
|
Weight |
500 kg |
